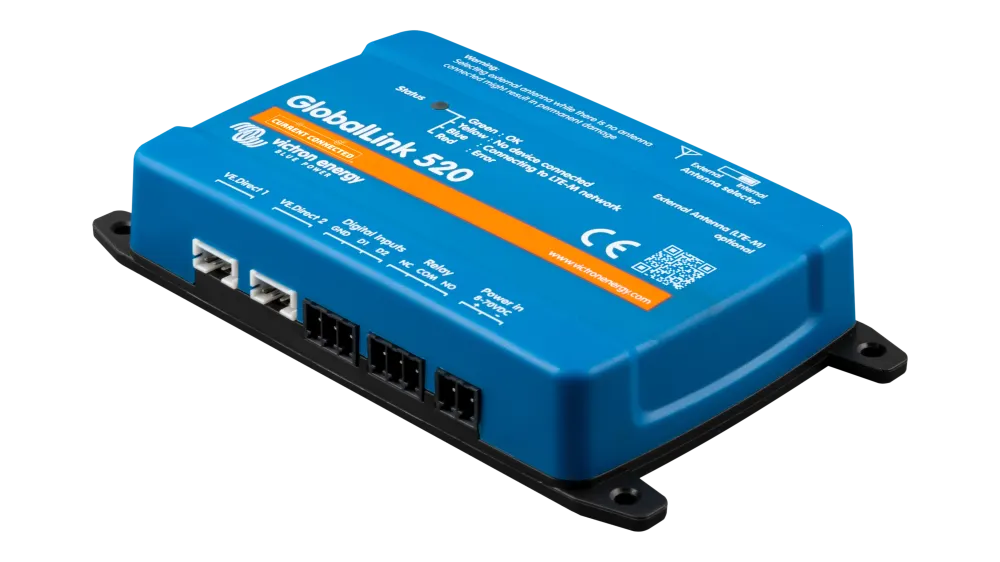

Victron Energy GlobalLink 520, 4G LTE-M Data for Connection to VRM, VictronConnect, Connects Up to 2 VE.Direct Devices, Supports RuuviTag Sensors

Overview

Off-grid should not mean offline, and the Victron GlobalLink 520 brings 4G LTE-M connectivity to VE.Direct devices so they report to VRM from remote sites. LTE-M supports handovers and roaming, so it also works in a moving campervan.

Key benefits

• Connects up to two VE.Direct devices, such as a BMV battery monitor or MPPT charge controller, to VRM.
• Digital inputs and a remote-controllable relay add monitoring and control.
• Supports RuuviTag sensors for temperature, humidity, and air pressure data in VRM.

Key features

• 4G LTE-M (LTE Cat-M1) connectivity
• Two VE.Direct communication ports
• Two digital inputs that also act as pulse counters
• Remote-controllable relay
• Built-in antenna, with an optional external antenna
• RuuviTag sensor support via BLE, set up in VictronConnect

Ideal use

Remote solar sites, cabins, and campervans with VE.Direct equipment that need monitoring without a local internet connection.

Key specifications

Model / SKU

ASS030543020

Brand

Victron Energy

Category

Home integration

From the manufacturer

Stay Connected Off-Grid with the Victron GlobalLink 520 Victron believes that having insight into your installation is a key factor in maintaining and operating your off-grid energy solutions. Off-grid should not mean off-line, so they have created the GlobalLink 520. This device brings 4G LTE-M connectivity to all VE.Direct enabled devices without any monthly fees or subscriptions, for the first five years (after which a new SIM card and service will need to be purchased through the carrier of your choice). Stay Connected on the Move LTE-M is the abbreviation for LTE Cat-M1 or Long Term Evolution (4G), category M1. This cellular technology connects Internet of Things devices to existing 4G towers while using low energy. LTE-M supports handovers and roaming, so it is possible to use this device in a moving vehicle like a campervan. Seamless Monitoring and Control The Victron GlobalLink 520 comes with two communication ports. This allows you to connect of up to two VE.Direct devices, such as a BMV Battery Monitor or MPPT Solar Charge Controller, directly to the VRM. Two digital inputs that also act as pulse counters and a remote controllable relay allow you to monitor and control your system. Global Coverage for Uninterrupted Connectivity The GlobalLink 520 features a built-in antenna designed to provide global coverage, ensuring uninterrupted connectivity during your adventures. Additionally, for those seeking constant connectivity in even the most remote places, an optional external antenna is available for purchase. Enhanced Monitoring via VictronConnect and VRM The Victron GlobalLink 520 now supports the RuuviTag temperature sensors. These battery powered sensors connect via BLE and are easy to set up via VictronConnect. All the data, like temperature, humidity, and air pressure from the RuuviTag sensors, will directly be available in VRM. Remote Access and Advanced Insights The online Victron Remote Management (VRM) portal provides you with access to your installation, from anywhere, at any time. In VRM you can check the status of your connected products, view detailed history graphs of your energy, generate detailed analytical reports, and even configure automatic alarms in case something goes wrong.

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Ask our team to confirm your VE.Direct devices will work with the GlobalLink 520. Message our team on WhatsApp.
