Overview

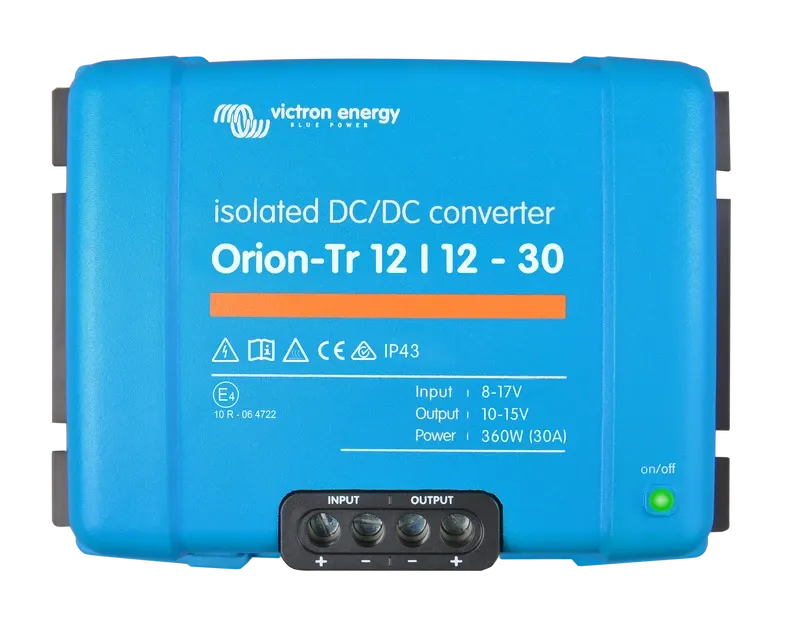

Voltage swings in a 12V system can upset sensitive equipment. The Victron Orion-Tr 12/12-30A (360W) is an isolated DC-DC converter that turns an 8V–17V input into a steady, adjustable output, with galvanic isolation between input, output, and case.

Key benefits

• Holds a consistent output voltage across the full input range.
• Galvanic isolation helps protect connected equipment from power fluctuations.
• Handles short surges, up to 40A for 10 seconds.
• Screw terminals allow straightforward wiring without special tools.

Key features

• 30A continuous output current and 360W continuous at 40°C
• Output adjustable from 10V–15V, 12.2V nominal
• Remote on/off
• Short circuit output current rating of 60A
• Weighs 4 lbs; dimensions 5.1 × 7.3 × 3.2 in

Ideal use

Useful in vehicles, boats, off-grid, and industrial systems that need stable, isolated 12V DC power for sensitive loads.

Key specifications

Model / SKU

1593088

Brand

Victron Energy

Category

Accessories

Voltage

12V

Rated power

360 W

From the manufacturer

Victron Orion-Tr 12/12-30A (360W) Isolated DC-DC Converter | Voltage Regulator *]:pointer-events-auto R6Vx5W_threadScrollVars scroll-mb-[calc(var(--scroll-root-safe-area-inset-bottom,0px)+var(--thread-response-height))] scroll-mt-[calc(var(--header-height)+min(200px,max(70px,20svh)))]" dir="auto" data-turn-id="request-WEB:433dee1d-1565-47c9-95d9-34a15554e2fb-3" data-turn-id-container="request-WEB:433dee1d-1565-47c9-95d9-34a15554e2fb-3" data-testid="conversation-turn-8" data-turn="assistant"> The Victron Orion-Tr 12/12-30A Isolated DC-DC Converter is a powerful and reliable solution for regulating and conditioning DC power in 12V systems. Designed with galvanic isolation between the input, output, and case, this converter helps protect connected equipment from power fluctuations while delivering a stable output voltage. With a wide 8V–17V input range, adjustable 10V–15V output, and 30A continuous output current, the Orion-Tr is ideal for demanding automotive, marine, industrial, and off-grid applications. Key Benefits: Stable Power Regulation: Maintains a consistent output voltage across the specified input range for reliable power delivery. High Output Capacity: Delivers up to 30A continuous output current and 360W of continuous power at 40°C. High Surge Capability: Supports up to 40A maximum output current for 10 seconds. Remote On/Off Capability: Allows the converter to be remotely enabled or disabled for greater system control. Short Circuit Protection: Features a short circuit output current rating of 60A. Easy Installation: Screw terminal connections allow for straightforward installation without requiring special tools. Use Cases: Perfect for automotive, marine, off-grid, industrial, and battery-powered applications requiring stable and isolated 12V DC power. Ideal for systems where voltage fluctuations need to be regulated to protect sensitive equipment and maintain consistent performance. Tech Specs: Rated Voltage: 12V Rated Amperage: 30A Nominal Output Voltage: 12.2V Output Voltage Range: 10V–15V DC Adjustable Weight: 4 lbs Dimensions: 5.1 × 7.3 × 3.2 in

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Ask our team whether the Orion-Tr 12/12-30A converter or the Smart charger version suits your system. Message our team on WhatsApp.
