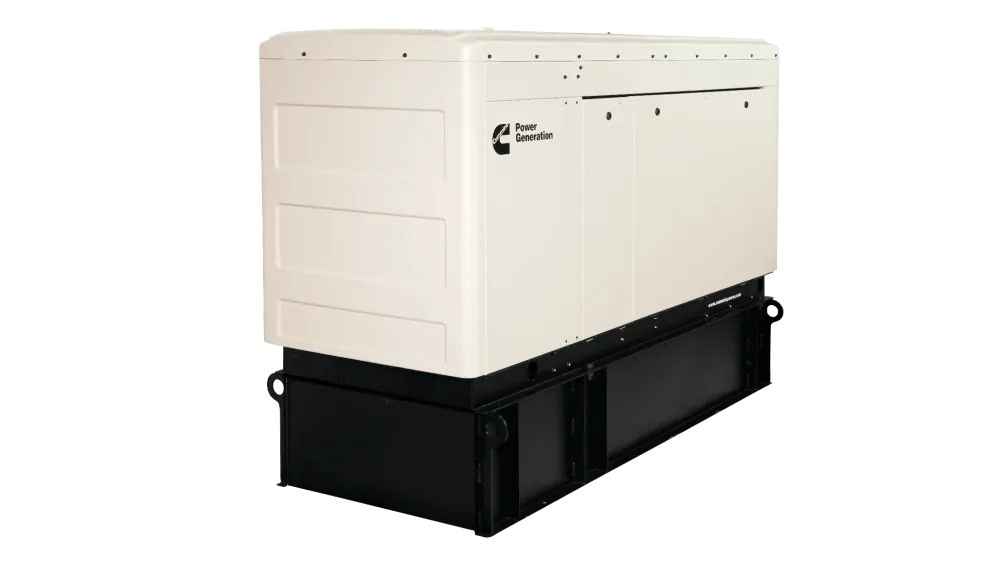

Cummins C20D6 20kW Diesel Home Standby Generator with 24-Hour Fuel Tank (120/240V Single Phase), A063P961

Overview

Diesel does not depend on utility gas lines that can fail in the same storm, which is the main case for the Cummins C20D6. This 20kW Quiet Connect Series standby generator (A063P961) comes with an integrated 24-hour steel fuel tank of about 43 gallons.

Planning a system? Read our guide: How to size a battery backup system for your home.

Key benefits

• Coolant heaters support cold starts down to -40°F, and the cooling system handles up to 122°F.
• Total harmonic distortion stays below 5%, which suits computers and sensitive electronics.
• Enough power for heating and cooling, well pumps, refrigeration and lighting at the same time.
• Made in the USA.

Key features

• Kubota V2203M 2.2-liter inline 4-cylinder diesel engine at 1800 RPM
• Integrated 24-hour steel fuel tank, approximately 43 gallons
• Sound Level 1 sandstone enclosure
• PowerCommand 1.1 digital controller
• Brushless 4-pole alternator with Class H insulation
• 50-amp battery charging alternator

Ideal use

Suited to rural homes, farms, off-grid properties and small commercial buildings on 120/240V single-phase service.

What is included

• Integrated 24-hour steel fuel tank

Key specifications

Model / SKU

A063P961

Brand

Cummins

Category

Whole-home backup

Voltage

120/240V

Rated power

20,000 W

From the manufacturer

Why Choose a 20kW Diesel Standby Generator for Your Home? When the grid goes down, a diesel home standby generator keeps your household running without interruption. Unlike natural gas or propane units, a diesel backup generator does not depend on utility gas lines that can fail during the same storms that knock out your electricity. Diesel fuel stores safely for extended periods, is widely available, and delivers more energy per gallon than gasoline, giving you longer runtimes and lower fuel costs during prolonged outages. For homeowners in rural areas, off-grid properties, farms, and small commercial facilities, a 20kW diesel generator provides enough power to run heating and cooling systems, refrigeration, well pumps, lighting, and essential electronics all at the same time. The Cummins C20D6 (model number A063P961) is a preconfigured 20kW automatic standby diesel generator from the Cummins Quiet Connect Series. It ships ready to install with an integrated 24-hour steel fuel tank (approximately 43 gallons), a Sound Level 1 sandstone enclosure, and the PowerCommand 1.1 digital controller. This is a whole house diesel generator designed for residential and light commercial backup power applications, and it is made in the USA by one of the most trusted names in power generation. Heavy-Duty Kubota Diesel Engine At the core of the C20D6 is the Kubota V2203M, a 2.2-liter inline 4-cylinder liquid-cooled industrial diesel engine with a cast iron block. Rated at 1800 RPM, this engine delivers dependable power and fast response to changing electrical loads. It is paired with a 50-amp battery charging alternator and uses a spin-on oil filter with a built-in pressure relief valve, keeping routine maintenance straightforward and fast. The standard cooling system handles ambient temperatures up to 122°F (50°C), and factory-installed coolant heaters ensure reliable cold-weather starts down to -40°F (-40°C). Whether you are dealing with summer heat in the desert Southwest or deep winter cold in the northern states, this diesel generator starts and runs when you need it. Clean, Stable Power Output The C20D6 features a brushless 4-pole revolving field alternator with a 2/3 pitch stator winding and a direct-coupled flexible disc rotor. The Class H insulation system (per NEMA MG1-1.65) supports a standard temperature rise of 120°C (248°F) in standby duty. Total harmonic distortion stays below 5% from no-load to full linear load, with less than 3% on any single harmonic. This level of power quality means your sensitive electronics, computers, medical equipment, and smart home systems receive clean electricity without risk of damage from voltage spikes or dirty power. The Telephone Influence Factor (TIF) is rated below 50 per NEMA MG1-22.43, and the Telephone Harmonic Factor (THF) remains under 3%. A direct-drive centrifugal blower provides consistent alternator cooling under sustained loads, so power quality does not degrade during extended outages. PowerCommand 1.1 Digital Controller The PowerCommand 1.1 electronic controller fully integrates the generator system. It provides automatic remote start and stop, precise isochronous frequency regulation, voltage regulation within ±1.0% from no-load to full load, alarm and status displays, output metering, and automatic shutdown when faults are detected. The controller also includes advanced self-diagnostic capability that reduces troubleshooting time and simplifies service for your installer or technician. A flexible exercise mode lets you set the schedule, duration, and frequency of generator exercise cycles. This reduces unnecessary fuel consumption, emissions, and noise between outage events, while keeping the engine and alternator ready to perform when a real power failure occurs. Built for Extended Runtime The integrated 24-hour basic fuel tank holds approximately 43 gallons of diesel. At 50% load, this provides an estimated 44 hours of continuous runtime before refueling is needed. Even at fu

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Our team can help you plan fuel, siting and transfer switch options for the C20D6. Message our team on WhatsApp.
