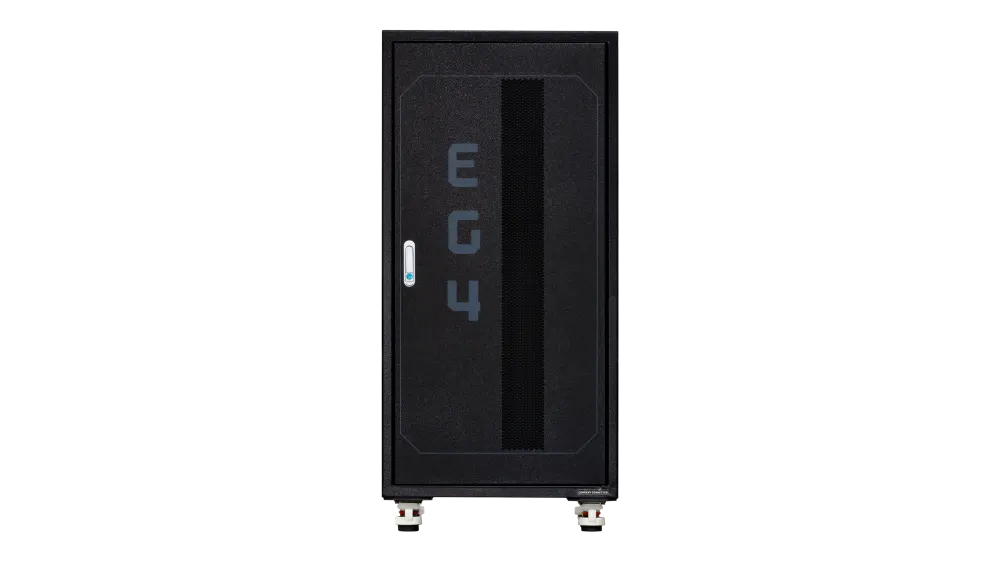

EG4 6-Slot Enclosed Battery Rack for Server Rack Batteries, Welded & Pre-Assembled Battery Storage

Overview

Six server rack batteries fit in this single freestanding EG4 steel cabinet, which comes fully welded and pre-assembled. At 24 x 26 x 46 inches it fits a garage, utility closet, or mechanical room.

Planning a system? Read our guide: How to size a battery backup system for your home.

Key benefits

• No frame to bolt together on site: slide in batteries, connect busbars, and route cables.
• 600A-rated busbars give headroom for six batteries at full discharge.
• Hinged, lockable door prevents casual access to live DC connections.
• Welded construction is more rigid than bolt-together racks.

Key features

• Accepts standard 19-inch server rack batteries in 12V, 24V, or 48V
• Up to 30.72 kWh with six EG4 LL-S 48V 100Ah batteries
• Vented front door and spaced slots for passive cooling
• Cable routing ports on top and bottom
• Removable casters; 100 lbs empty
• Black powder-coated heavy-duty steel

Ideal use

For home or shop battery banks of up to six units, especially in shared spaces where a locking cabinet matters.

What is included

• 600A-rated busbars with protective covers
• Removable casters

Key specifications

Model / SKU

EG4EBR00V00A6SW

Brand

EG4

Category

Batteries

Voltage

48V

Energy capacity

30.7 kWh

From the manufacturer

About the EG4 6-Slot Enclosed Battery Rack The EG4 enclosed battery rack holds up to six server rack batteries in a single freestanding steel cabinet. It ships fully welded and pre-assembled, so there’s no frame to bolt together on site. Slide the batteries in, connect the included busbars, route your cables, and the installation is done. At 24 x 26 x 46 inches it fits in a garage, utility closet, or mechanical room without taking up more floor space than necessary. What It Holds The rack accepts standard 19-inch server rack form factor batteries. Six slots means up to 30.72 kWh of storage with EG4 LL-S 48V 100Ah batteries, or equivalent capacity with other server rack batteries in 12V, 24V, or 48V configurations. The slots are spaced to allow airflow between batteries, and the vented front door promotes passive cooling without requiring fans. Busbars and Wiring The rack includes 600A-rated heavy-duty busbars with protective covers for connecting batteries in parallel. That’s enough headroom for six batteries at their full discharge rate without needing external busbar upgrades. Cable routing ports on the top and bottom of the enclosure keep wiring organized and out of the way. Security and Access The front door is hinged and lockable. This matters in shared spaces like garages, shops, and commercial buildings where you don’t want someone opening a cabinet full of live DC connections. The lock is a basic keyed latch, not a high-security mechanism, but it prevents casual access and satisfies most installation requirements for battery enclosures. Mobility The rack comes with removable casters, so you can roll it into position during installation and then either leave the casters on or remove them for a permanent floor-mounted setup. At 100 lbs empty, you’ll want the casters on until the rack is in its final location, because once you load six batteries it’s not moving by hand. Construction Welded heavy-duty steel with a black powder-coated finish. The powder coat adds corrosion resistance for garage and basement environments where humidity can be a factor. The welded construction is noticeably more rigid than bolt-together rack alternatives, which matters when you’re stacking several hundred pounds of batteries.

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.
