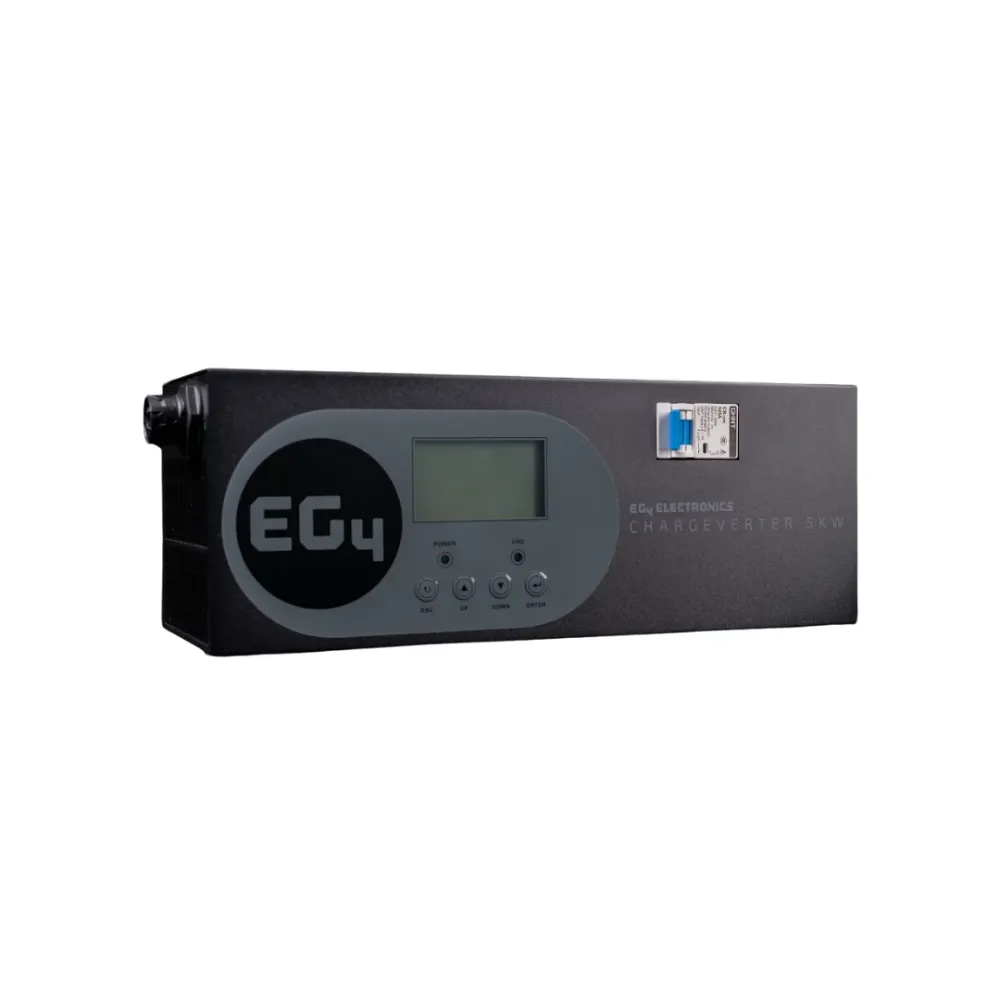

EG4 Chargeverter - GC | 48V 100A Battery Charger 5120W Output

Name: EG4 Chargeverter - GC | 48V 100A Battery Charger 5120W Output
Brand: EG4
SKU: 1511091
Price: 450.49 USD
Availability: InStock

$450.49

In stockShips from Baton Rouge, LA30-day warrantyFrom delivery, on eligible productsFree shippingProcessing 1 business day after payment; delivery about 2–7 business days after dispatch

Shipping & delivery 30-day returns Warranty

Check local voltage, plug, installation, and product-certification requirements before ordering. We confirm compatibility and availability for your destination before payment.

Overview

Generator charging without inverter trouble is what the EG4 Chargeverter GC provides. This 48V, 100A AC charger outputs up to 5120W and accepts 240V or 120V input.

Key benefits

Charges batteries from a generator during low-light weather.
Guards against unreliable sine waves from lower-budget generators, protecting inverters.
Dry contacts control generator start and stop by voltage or state of charge.
Closed-loop charging by SOC with EG4 batteries when they are not communicating with the inverter.

Key features

48VDC nominal battery voltage
Adjustable charge current 0-100A at 240VAC
Adjustable charge voltage 43-57VDC (default 54VDC)
AC input 90-264VAC; maximum 26A at 240VAC, 28A at 120VAC
Maximum output 5120W at 240VAC

Ideal use

For solar systems with a backup generator in areas with unpredictable weather. EG4 Chargeverter Adapter Cables are required for battery communication.

Key specifications

Model / SKU: 1511091
Brand: EG4
Category: Accessories
Voltage: 48V
Rated power: 5,120 W

From the manufacturer

EG4 Chargeverter - GC | 48V 100A Battery Charger 5120W Output | 240/120V Input Introducing the EG4 Chargeverter 5KW AC Charger, a high-performance battery charger designed for reliability and versatility. With its 48V 100A capacity and 5120W output, this charger ensures efficient power supply for various applications. Its compact design and dual 240/120V input make it suitable for diverse setups. Bad Weather Resilience: Charge batteries during low light conditions using a generator (up to 100A) Ideal for unpredictable weather patterns Protection from "Dirty Power": Guards against unreliable sine waves from lower-budget generators Protects inverters from power quality issues Charger Output Specifications: Optimized for 240 VAC power supply Nominal Battery Voltage: 48VDC Adjustable Charge Current: 0-100A at 240VAC Adjustable Charge Voltage: 43-57VDC (Default at 54VDC) Maximum Output Watts: 5120W at 240 VAC AC Input Specifications: Plug directly into a generator without concern for power issues AC Input Voltage Range: 90-264VAC Maximum Input Amps: 26A at 240VAC, 28A at 120VAC Dry Contacts: Control of generator start/stop function based on Voltage or state of charge (SOC) Using EG4 Batteries? Closed loop communication with EG4 batteries for charging based on battery state of charge (SOC), when batteries are not in communication with the inverter. EG4 Chargeverter Adapter Cables are required to enable this communication between the Chargeverter and the EG4 battery

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Our team can help you pair the Chargeverter GC with your generator. Message our team on WhatsApp.
