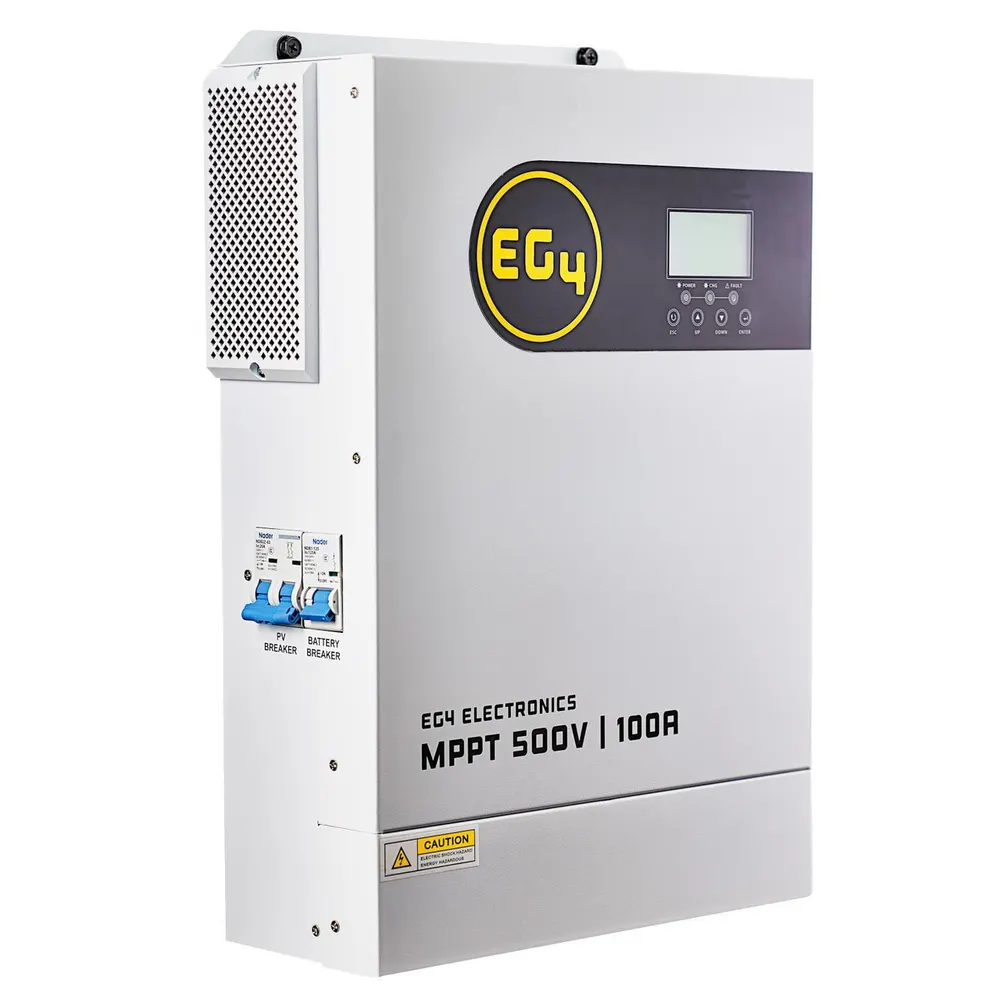

EG4 Solar Charge Controller MPPT | 500VDC 100A | MPPT100-48HV

Overview

For 48V battery banks, the EG4 MPPT100-48HV converts high-voltage solar input into the steady voltage needed for safe charging. It accepts up to 500VDC of PV input and provides up to 100A of charge current, a practical way to add solar capacity to a system.

Planning a system? Read our guide: How to charge a portable power station with solar panels.

Key benefits

• MPPT tracking pulls the most power the panels can offer for efficient battery charging.
• The 500VDC input can reduce the need for combiner boxes in certain system designs.
• Charge current is adjustable from 0A to 100A.
• Communicates with EG4 batteries through the RS485 BMS port when used with non-EG4 compatible inverters.

Key features

• PV input up to 500VDC
• Max PV string current: 22A
• 48V nominal battery with a 48-62VDC charging range
• Built-in PV disconnect and battery breaker
• RS485 BMS communication port

Ideal use

Adding solar charging to off-grid, backup, cabin, RV, and other battery-based systems, or adding PV input to an existing setup.

Key specifications

Model / SKU

1570006

Brand

EG4

Category

Solar panels

Voltage

500VDC

From the manufacturer

*]:pointer-events-auto [content-visibility:auto] supports-[content-visibility:auto]:[contain-intrinsic-size:auto_100lvh] R6Vx5W_threadScrollVars scroll-mb-[calc(var(--scroll-root-safe-area-inset-bottom,0px)+var(--thread-response-height))] scroll-mt-[calc(var(--header-height)+min(200px,max(70px,20svh)))]" dir="auto" data-turn-id="request-WEB:8ea79448-ff10-4ed7-ac5e-ba17fcac765d-0" data-turn-id-container="request-WEB:8ea79448-ff10-4ed7-ac5e-ba17fcac765d-0" data-testid="conversation-turn-2" data-scroll-anchor="false" data-turn="assistant"> Maximize Solar Charging Performance for 48V Battery Systems The EG4 MPPT100-48HV is a simple, reliable solar charge controller designed to help you get more usable power from your solar array. It converts higher-voltage solar input into the lower, steady voltage needed to safely charge a 48V battery bank, making it a strong option for expanding or improving a new or existing solar system. Key Benefits Maximizes Solar Harvesting: Uses MPPT technology to pull the most available power from your solar panels for more efficient battery charging. High-Voltage PV Input: Supports up to 500VDC open-circuit voltage, helping reduce the need for combiner boxes in certain system designs. Fast Battery Charging: Delivers up to 100A of charging current, with adjustable settings from 0A–100A. Designed for 48V Battery Systems: Built for 48V nominal battery banks with a 48–62VDC charging range. Built-In Protection: Includes PV array DC disconnect and battery breakers for added system safety. EG4 Battery Communication: Communicates with EG4 batteries through the RS485 BMS port when used with non-EG4 compatible inverters. Use Cases The EG4 MPPT100-48HV is ideal for adding more solar charging capability to off-grid, backup power, cabin, RV, and battery-based solar systems. It can also be used to expand an existing system where additional PV input is needed to support faster charging and better energy production. Tech Specs PV Input: Up to 500VDC Max PV String Current: 22A Battery Voltage: 48V nominal Charging Voltage Range: 48–62VDC Communication: RS485 BMS port Protection: Built-in PV disconnect and battery breaker

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Our team can help you check string voltages and battery settings before adding the MPPT100-48HV to your system. Message our team on WhatsApp.
