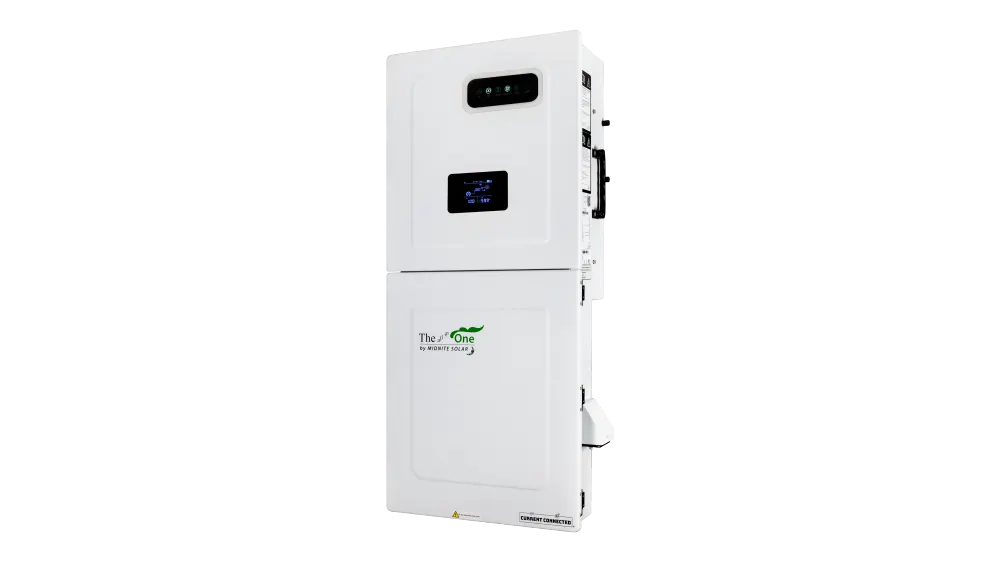

MNP MN15-12KW-AIO 48V 11.4kW AC Output Hybrid All-in-One Inverter, UL 1741 Solar Inverter with Smart Ports

Overview

This is the MNP MN15-12KW-AIO hybrid all-in-one inverter for 48V battery systems. It combines three MPPT charge controllers, battery inverter and generator control in one unit for homes and commercial sites.

Planning a system? Read our guide: How to size a battery backup system for your home.

Key benefits

• Transfer time under 10ms lets it act as a UPS for important loads.
• Three 120/240V programmable outputs handle load shedding without an external programmable distribution box.
• Automatic generator start and stop runs a generator when batteries get low.
• Web-based app gives real-time monitoring and remote settings changes.

Key features

• Three MPPTs using up to 600VDC, rated 30A/22A/22A
• Max efficiency 98.0% PV to AC and 94.5% battery to AC
• Supports 40-64VDC lithium or lead-acid batteries
• Stackable up to 9 units
• Supports AC coupling and self-consumption
• UL 1741 SB, sell to grid

Ideal use

Residential or commercial solar-plus-storage systems with larger arrays, where the owner wants UPS-style backup and generator integration.

Key specifications

Model / SKU

MN15-12KW-AIO

Brand

MNP

Category

Whole-home backup

Voltage

48V

Rated power

12,000 W

From the manufacturer

The MNP MN15-12kW-AIO is an 11,400-watt system that features three MPPT charge controllers and three 120/240V programmable outputs that can be used for load shedding or opportunity loads. With these three programmable outputs, there is no need for an external programmable distribution box. Heavy use loads can be controlled based on user-defined settings. This inverter has a less than 10ms transfer time, allowing it to function as a UPS for important loads. It also comes with an automatic generator start and stop function, allowing it to start a generator when the batteries get too low. The AIO’s 3 MPPT input is capable of utilizing the full 600VDC allowed by the NEC, resulting in the possibility of larger arrays. Compared to most all-in-one inverters, the MNP AIO can ensure larger arrays ensuring all loads are properly powered. The MPPTs can take in 30A/22A/22A each giving you diversity on each string of panels. The MNP AIO comes with real-time monitoring and controls through its web-based app. This web-based app allows tracking of the inverter’s performance and settings that can be changed remotely. Features: Stackable up to 9 units Max Efficiency 98.0% (PV to AC) Max Efficiency 94.5% (Batt to AC) Supports AC coupling and Self-Consumption Continuous 100% AC Power (11.4kW with PV, 10kW without PV) Supports 40-64VDC Lithium or Lead-Acid Batteries Residential and Commercial UL 1741 SB Sell to Grid 10 Year Warranty

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Contact our team to discuss whether it fits your battery bank and array. Message our team on WhatsApp.
