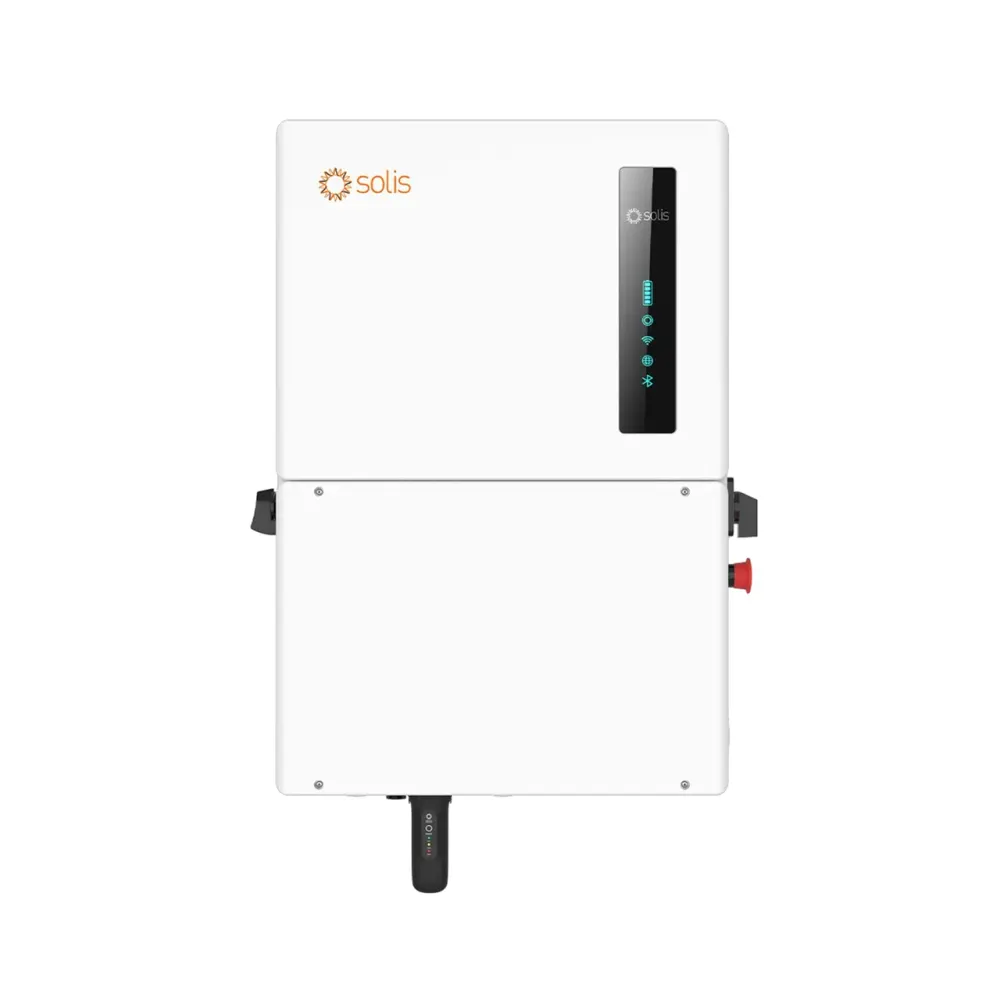

Solis S6 11.4kW Single Phase High Voltage Energy Storage Hybrid Inverter | S6-EH1P11.4K-H-US-RSS-RGM

Overview

Listed as the S6-EH1P11.4K-H-US-RSS-RGM, this is the RGM version of the Solis S6 11.4kW single-phase high-voltage hybrid inverter. It is grid-forming, scalable with DC-coupled batteries, and can be paralleled for more capacity.

Planning a system? Read our guide: How to size a battery backup system for your home.

Key benefits

• Supports multiple battery brands with up to 150 kWh of storage per inverter.
• AC coupling lets it upgrade an existing grid-tied system.
• Generator support keeps power available when the utility is down.

Key features

• Built-in RSS for rapid shutdown
• 16A DC input at each MPPT
• PVRSS certified and UL3741 compliant with proper racking and shutdown devices
• NEC 2020 compliant with integrated RSD transmitter options

Ideal use

Suited to homeowners and installers building an expandable storage system. A firmware update is required at commissioning.

Key specifications

Model / SKU

1651009

Brand

Solis

Category

Whole-home backup

Energy capacity

150 kWh

Rated power

11,400 W

From the manufacturer

Solis S6 11.4kW Single Phase High Voltage Energy Storage Hybrid Invert er | S6-EH1P11.4K-H-US-RSS The S6 (Series 6) hybrid energy storage string inverter is the latest in hybrid inverter technology, versatile and flexible for the growing solar storage marketplace. This easily scalable hybrid inverter can be DC-coupled to a variety of batteries post-installation as well as can be paralleled to add capacity. The S6 hybrid is a grid-forming inverter that supports the latest high-powered PV modules with 16A DC inputs at each MPPT. This product line is also certified PVRSS and UL3741 compliant when utilized with proper racking and array-level shutdown devices. Safeguard your power, while ensuring the ability to easily grow your solution and preserve your investment. Key Features: Safety: Unit comes equipped with a built in RSS for easy rapid shutdown access System Flexibility: Intelligent AC coupling scheme easily upgrades existing grid-connected systems Generator Support: Supports operation in parallel with a generator and allows the generator to function as the grid source if utility power is lost Compliance: NEC 2020 compliant with various integrated RSD transmitter options are available for module-level rapid shutdown Compatibility: Compatible with multiple battery brands, providing up to 150 kWh of storage capacity per inverter Note: This inverter requires a firmware update at the time of commissioning.

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Our team can help you decide between the RSS-RGM and RSS versions of the Solis S6 11.4kW. Message our team on WhatsApp.
