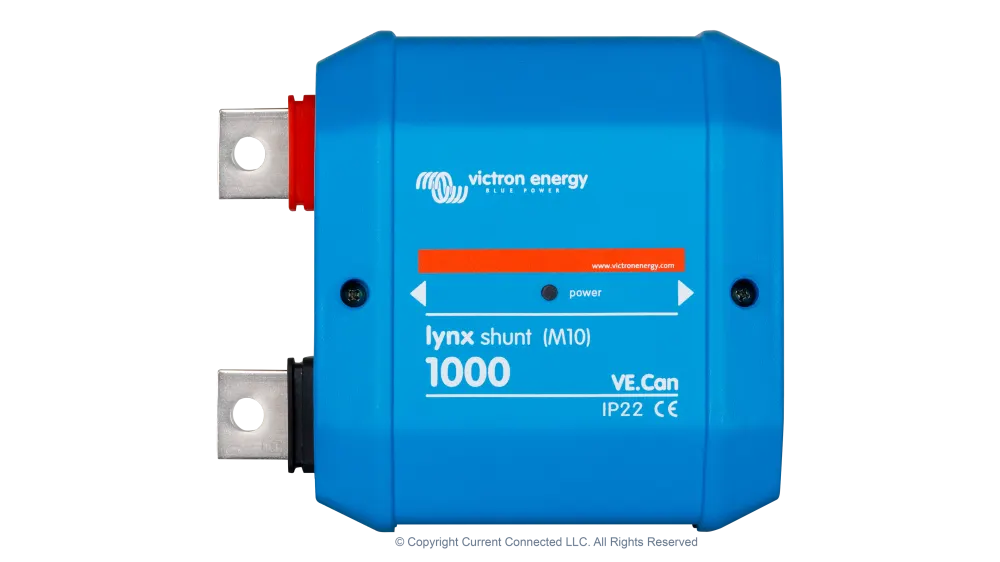

Victron Energy Lynx Shunt VE.Can with M10 Interconnections, Calculates and Monitors Battery Power, Works with GX Devices for Remote Monitoring

Overview

Part of the Lynx Distribution System, the Victron Lynx Shunt VE.Can combines a 1000A battery monitor shunt with a positive busbar for the main system fuse. It reports to a GX device such as the Cerbo GX or Ekrano GX for remote monitoring.

Planning a system? Read our guide: How to size a battery backup system for your home.

Key benefits

• Tracks battery state of charge with its built-in battery monitor.
• Sends battery data over VE.Can to a GX device for real-time readings.
• Combines fuse holder and shunt in one Lynx module, reducing separate parts.

Key features

• 1000A-rated bus bar
• Suits 12V, 24V, and 48V systems
• Positive busbar with space for a CNN main system fuse
• Negative busbar with built-in shunt
• IP22 rating
• M10 interconnection bolts, maximum torque 17 ft-lbs

Ideal use

High-current Victron battery banks built around the Lynx Distribution System with a Cerbo GX or Ekrano GX.

Key specifications

Model / SKU

LYN040102110

Brand

Victron Energy

Category

Batteries

Voltage

12V

From the manufacturer

Victron Lynx Shunt VE.Can Efficiently monitor and manage your battery system with the Victron Lynx Shunt VE.Can. Designed as part of the Lynx Distribution System, this 1000A shunt provides accurate battery monitoring and integrates with a GX device for easy data reading and analysis. Intelligent Battery Monitoring Equipped with a built-in battery monitor, the Victron Lynx Shunt accurately tracks the state of charge of your battery. Seamless Connectivity The Victron Lynx Shunt can communicate via VE.Can with a GX Device, such as the Cerbo GX or the Ekrano GX. This enables the reading and analysis of crucial battery information through real-time insights. Robust Construction The Lynx Shunt VE.Can features a sturdy design that ensures long-lasting performance. Its 1000A-rated bus bar enables high-capacity current flow, accommodating the needs of 12V, 24V, and 48V systems. The IP22 rating safeguards the unit against dust and water splashes. Easy to Use The Victron Lynx Shunt VE.Can comes with both a positive busbar with a dedicated space for the main system fuse and a negative busbar with a built-in shunt for battery monitoring. Additionally, the Lynx Shunt VE.Can is designed to hold a CNN Fuse. The proper torque spec is found in Victron’s Wiring Unlimited document. The M10 bolts that connect multiple components of a Lynx Distribution System have a maximum torque value of 17 ft-lbs.

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Ask our team which Lynx modules and fuse size pair with this shunt for your bank. Message our team on WhatsApp.
