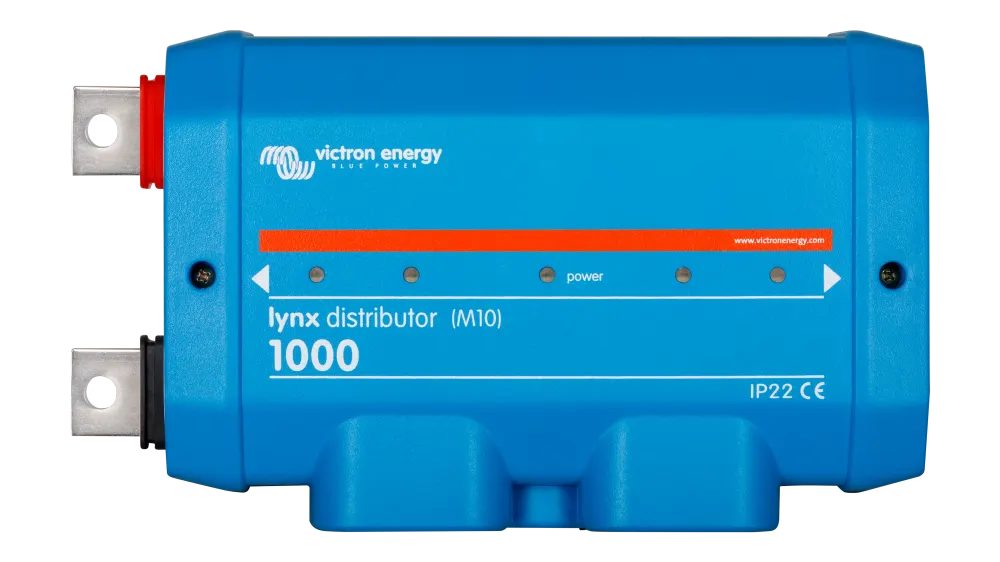

Victron Lynx Distributor, Lynx Power Distribution System with M10 Interconnections, 1000A Fused Busbar with 4 Positive Positions and 4 Negative Positions

Name: Victron Lynx Distributor, Lynx Power Distribution System with M10 Interconnections, 1000A Fused Busbar with 4 Positive Positions and 4 Negative Positions
Brand: Victron Energy
SKU: LYN060102010
Price: 209.61 USD
Availability: InStock

$209.61

In stockShips from Baton Rouge, LA30-day warrantyFrom delivery, on eligible productsFree shippingProcessing 1 business day after payment; delivery about 2–7 business days after dispatch

Shipping & delivery 30-day returns Warranty

Check local voltage, plug, installation, and product-certification requirements before ordering. We confirm compatibility and availability for your destination before payment.

Overview

This listing covers the Lynx Distributor with M10 interconnections, a modular busbar with separate positive and negative sides. It integrates with the Lynx Power Distribution System and the VictronConnect app for monitoring and setup.

Key benefits

Positive and negative busbars in one module simplify DC wiring.
Real-time LED indication for each monitored fuse.
With a Lynx Smart BMS and a GX device you can monitor up to four distributors and set alarms and notifications.

Key features

Positive busbar with four fuse-protected connections
Negative busbar with four connections plus a ground connection
1000A fused busbar with M10 interconnections
M10 connecting bolts: maximum torque 17 ft-lbs
Internal M8 fuse and cable bolts: maximum torque 106 in-lbs

Ideal use

Suited to larger battery and inverter systems built on the Lynx system, especially where central monitoring through a GX device is planned.

Key specifications

Model / SKU: LYN060102010
Brand: Victron Energy
Category: Home integration

From the manufacturer

Victron Lynx Distributor The Victron Lynx Distributor is a modular busbar system. Designed to integrate with the Lynx Power Distribution System and VictronConnect App for monitoring and control. The Lynx Distributor has a positive and a negative busbar with multiple connections. The positive busbar has four fuse-protected connections. Each fuse is monitored, an LED indicator on the front provides real-time updates. The negative busbar has four connections and a ground connection. You can use the VictronConnect App to monitor and configure your distribution setup. You can monitor up to four Lynx Distributors using a GX Device when connected to a Lynx Smart BMS. The Lynx Smart BMS, integrated with the Lynx Distributor, allows you to create alarms and receive notifications. The proper torque spec is found in Victron’s Wiring Unlimited document. The M10 bolts that connect multiple components of a Lynx Distribution System have a maximum torque value of 17 ft-lbs, and the internal M8 bolts that connect fuses and cables have a maximum torque value of 106 in-lbs.

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Ask our team to check how this Lynx Distributor fits with your BMS and GX device. Message our team on WhatsApp.
