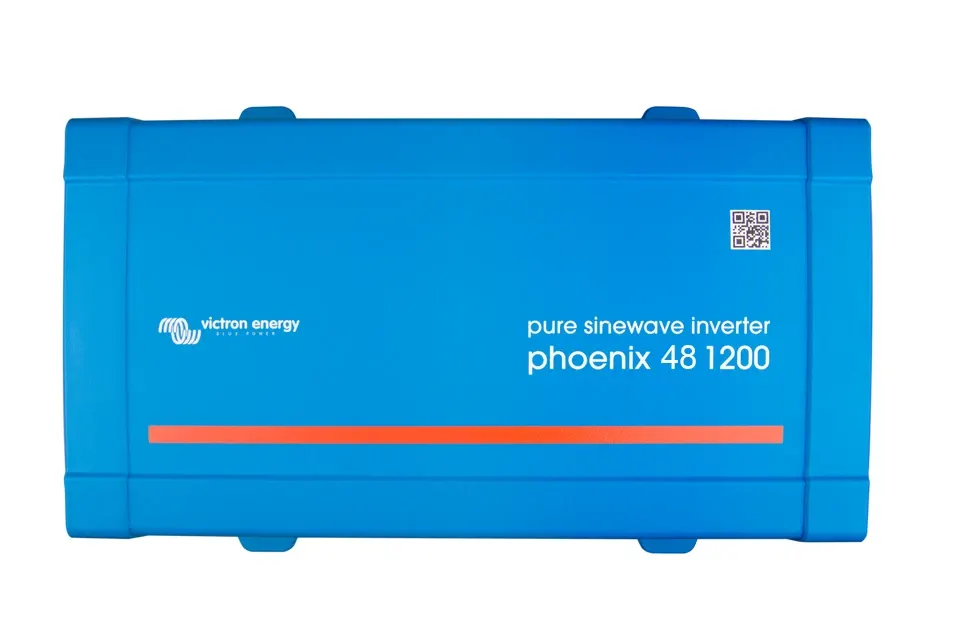

Victron Phoenix Inverter 48/1200 | VE.Direct | 1200VA Output| 48VDC Input | 120VAC Output

Overview

For 48V systems that need a small, efficient AC source, this 48V input Phoenix Inverter 1200VA with VE.Direct is a compact low-frequency option. Its toroidal transformer handles surge from inductive loads.

Planning a system? Read our guide: How to size a battery backup system for your home.

Key benefits

• Very low idle consumption, as low as 1-2W in eco mode, for loads that run all day.
• Lets a 48V bank run small AC loads without a large inverter.
• Configurable battery protection settings.

Key features

• 48V DC input, 120V 60 Hz output
• Full-bridge plus toroidal transformer topology
• Configurable low battery alarm, cut-off, and restart levels, plus dynamic load-dependent cut-off
• Monitoring of input and output voltage, load percentage, and alarms
• Short-circuit proof with overheat protection
• ECO mode and programmable remote power switch

Ideal use

Useful in 48V home and off-grid systems as a dedicated low-draw inverter for continuous small loads such as networking or monitoring equipment.

Key specifications

Model / SKU

1593080

Brand

Victron Energy

Category

Whole-home backup

Voltage

48VDC

Rated power

10 W

From the manufacturer

Victron Phoenix Inverter 48/1200 | VE.Direct | 1200VA Output| 48VDC Input | 120VAC Output The Phoenix Inverter VE.Direct is a uniquely compact, low-frequency inverter with a built-in full bridge toroidal transformer allowing it to handle large surge capacity from inductive loads. The Phoenix is distinctly efficient, with around 10W standard idle consumption or as low as 1-2w in eco mode. Compared to larger inverters, idle consumption can often be upwards of 100W+. This feature alone sets this unit apart and makes it perfect for running continuous loads throughout a 24hr period with the most efficiency possible. Key Features: Connection versatility with desktop computers and mobile devices Fully configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load-dependent cut-off level Output: 120V 60 Hz In-and-output voltage, load percentage, and alarm monitoring Full-bridge PLUS toroidal transformer topology Short-circuit proof Overheat protection ECO Mode included Programmable remote power switch From unboxing to install, we’re with you every step. Reach out to our lifetime, USA-based support team anytime you need guidance.

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Ask our team whether the 48V Phoenix 1200VA suits your system. Message our team on WhatsApp.
