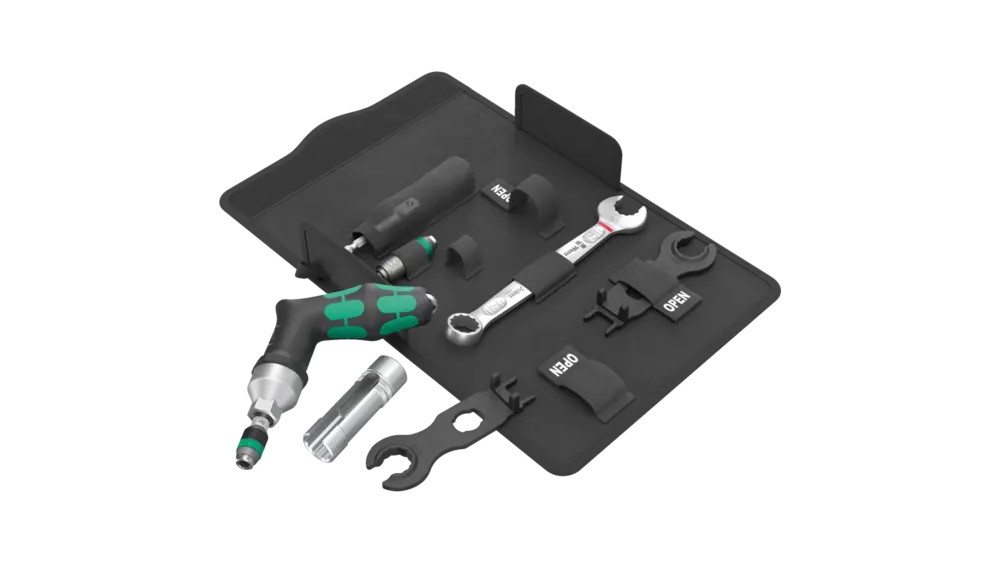

Wera 9524 Photovoltaic Mounting Tool Set 1 for Installing Solar Connectors, 7 Piece Set

Overview

Designed specifically for photovoltaic work, the Wera 9524 Photovoltaic Mounting Tool Set 1 includes 7 tools for installing solar panels and MC4 connectors. It suits home solar builders and installers connecting panels to inverters and batteries.

Planning a system? Read our guide: How to charge a portable power station with solar panels.

Key benefits

• Two dedicated tools for MC4 connectors, the standard for panel-to-panel connections.
• The 7442 torque screwdriver helps tighten to spec, reducing electrical hazards.
• A 1/2in socket with a side cutout lets the cable pass through without excessive bending.

Key features

• 2 MC4 connector installation tools
• 7442 adjustable torque screwdriver with pistol handle, 3-6Nm, with audible signal and slip-over mechanism
• 1/2in socket with side cutout
• 889/4/1 F Rapidaptor bitholding screwdriver for quicker installation
• 6003 Joker wrench for tight spaces
• Velcro case

Ideal use

A practical kit for grid-tied, off-grid, and hybrid solar installations, especially for MC4 connector and panel wiring work.

What is included

• 2 MC4 connector installation tools
• 7442 torque screwdriver
• 1/2in socket with side cutout
• 889/4/1 F Rapidaptor bitholding screwdriver
• 6003 Joker wrench
• Velcro case

Key specifications

Model / SKU

5136043001

Brand

Wera

Category

Solar panels

From the manufacturer

Wera 9524 Photovoltaic Mounting Tool Set Overview Wera’s 9524 tool set includes 7 tools specifically designed for photovoltaic systems installation, giving home solar builders the professional tools needed to install solar panels and to connect them to inverter systems, solar batteries, or systems with a portable generator. These tools simplify the installation process for off-grid solar systems and residential photovoltaic systems. Wera 9524 Photovoltaic Mounting Tool Set Key Features Purpose-Built Tools for Photovoltaic Systems Installation: This isn’t an adapted tradesman’s kit. It’s designed specifically for solar work. The set includes 2 installation tools specifically for MC4 solar connectors, the industry-standard connector for panel-to-panel connections. Professional Torque Control: The 7442 adjustable torque screwdriver includes a pistol handle and precise torque settings of 3-6Nm. This tool provides an audible excess-load signal and a reliable slip-over mechanism upon reaching the set torque. This is critical for proper tightening, and proper torque reduces potentially dangerous electrical hazards. Smart Design for Solar-Specific Challenges The 1/2in socket includes a side cutout for installing panel connectors or other components with cables. Place the socket over the connector, and the cable comes through the side without excessive bending. The 889/4/1 F Rapidaptor bitholding screwdriver includes a free-running function for quicker installation. The 6003 Joker wrench includes advanced technology so it can fit in tighter spaces and still maintain maximum rotation capability. This is ideal for inverter enclosures and battery compartments. Complete Your Solar Independence Whether you’re mounting panels for a grid-tied system, building a complete off-grid solar system with solar batteries and an inverter charger, or creating a hybrid setup with a portable generator, the Wera 9524 gives you the professional capability to do it right the first time. The set includes a velcro case for easy access and maximum portability.

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Our team can help if you have questions about using the Wera 9524 set with your connectors. Message our team on WhatsApp.
