Shipping & delivery30-day returnsWarranty
Check local voltage, plug, installation, and product-certification requirements before ordering. We confirm compatibility and availability for your destination before payment.
For off-grid homes that need split-phase power, the APEX-10K combines a 10kW inverter, a dual MPPT solar charge controller, and a 200A battery charger in one wall-mounted unit. It provides 120/240V pure sine wave output from a 48V battery bank and is UL 1741 certified, which BigBattery notes makes permitting straightforward in most US jurisdictions.
Planning a system? Read our guide: How to charge a portable power station with solar panels.
Off-grid homes and properties with heavy motor loads such as well pumps or compressors, running a 48V battery bank with solar and a backup generator.

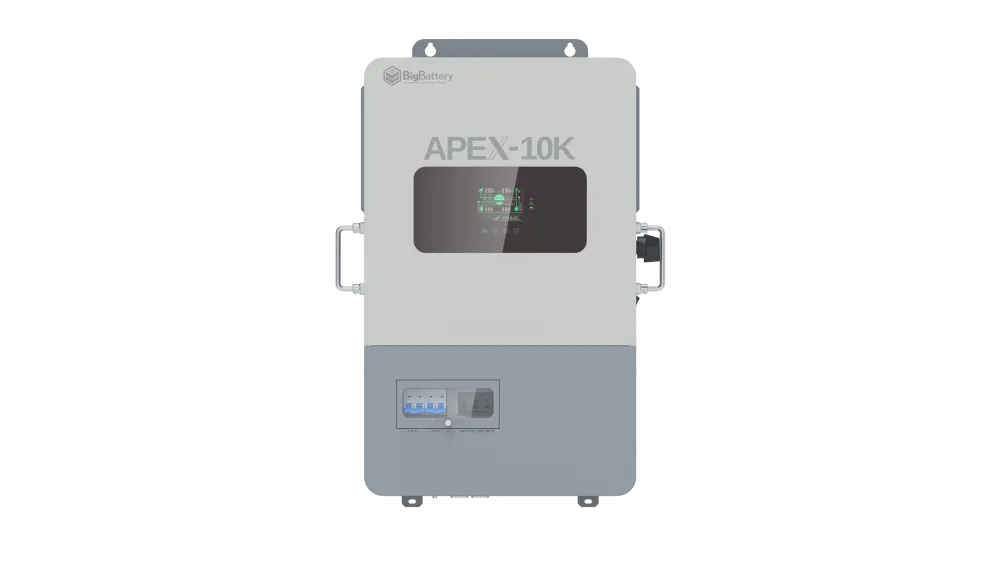

About the BigBattery APEX-10K Hybrid Inverter The APEX-10K combines a 10kW inverter, dual MPPT solar charge controller, and 200A battery charger in a single wall-mounted unit. It outputs 120/240V split-phase pure sine wave power from a 48V battery bank, with a 20kVA surge rating that handles well pumps, compressors, and motor startup loads up to 6 HP. The pure sine wave output is equally clean for sensitive electronics, networking equipment, and audio gear. UL 1741 certified, so permitting for battery-based power systems in most US jurisdictions is straightforward. pre-configures every APEX-10K before shipment to your battery and system specifications, so it arrives ready to wire. Dual MPPT Solar Input Two independent MPPT trackers accept up to 10,500W of combined PV input (5,000W on MPPT 1 and 5,500W on MPPT 2). Each tracker operates independently with a 125-450Vdc MPPT range and 550Vdc maximum open-circuit voltage, so you can run strings at different orientations or panel counts without one tracker affecting the other. Maximum input current is 22A per MPPT. The combined solar charge rate maxes out at 200A to the battery bank. Four Output Priority Modes The APEX-10K gives you four configurable priority modes that determine how the inverter sources power and manages charging: UTI (Grid First): Grid powers the load whenever available. PV additional the grid and charges the battery. The battery only discharges when the grid drops out. This is the default mode. SBU (Inverter First): PV and battery power the load first. The grid only kicks in when battery voltage drops below your configured threshold. When the battery recovers, it switches back to inverter output. This maximizes battery cycling and solar self-consumption. SOL (Solar First): PV powers the load first. If PV is insufficient, the grid additional without discharging the battery. This preserves battery capacity while maximizing direct solar use. SUB (Solar/Battery Priority with Grid Charging): Solar charges the battery and powers loads. Grid charges the battery when solar is insufficient but only powers loads when both solar and battery are exhausted. Battery discharges only when the grid is unavailable. Grid and Generator Input A single AC input accepts either grid power or a generator (not simultaneously). The 120A maximum charge current from the AC input recharges batteries quickly when solar isn’t available. The 45-65Hz input frequency range accommodates portable generator frequency drift. PowerControl limits the total AC input draw to whatever you configure, preventing generator overload. The dry contact port supports remote generator start/stop. When battery voltage drops to your configured threshold, the relay closes to signal a compatible two-wire start equipped generator to start. When the battery recovers, the relay opens and the generator shuts down. No manual intervention required. Timed Charge and Discharge Scheduling Three configurable time windows let you schedule when the grid charges the battery and when the battery discharges to loads. For installations with time-of-use utility rates, this means charging from the grid during off-peak hours and discharging during peak pricing. Each of the three charge periods and three discharge periods is independently configurable down to the minute. Parallel and Split-Phase Configurations A single APEX-10K outputs 120/240V split-phase from one unit (L1 and L2 at 180° phase offset). For more capacity, up to 6 units parallel together using DB15 communication cables. Two units can also be configured as a two-phase system, and three or more units support full three-phase output for commercial applications. All parallel units must share the same battery bank. Each unit’s PV array must be independent (no shared strings between units). The parallel communication cables are included in the box. BMS Communication and Battery Compatibility The APEX-10K works with 48V lithium (LiFePO4 and ternary) and lead-acid batteries (sea
Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.
We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.
Send our team your array and battery details and we can help confirm the APEX-10K is the right inverter for your system. Message our team on WhatsApp.
Tigo Energy

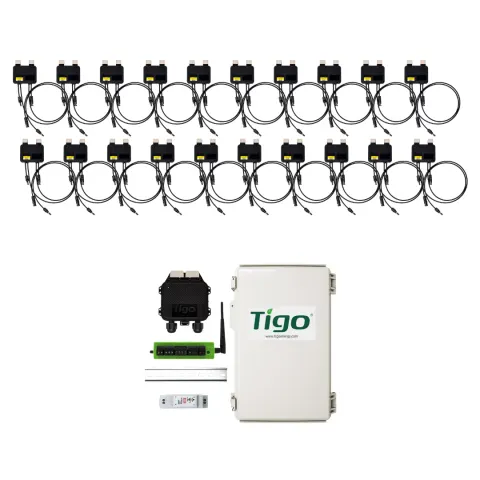

Sized for bigger arrays, this 20-pack bundles twenty Tigo TS4-A-O long-cable optimisers with a Cloud Connect Advanced data logger kit. You get module-level optimisation, per-panel monitoring, and rapid shutdown across the whole array.
$1,220.82
MidNite Solar
RV and mobile installers wanting a compact inverter that can start large appliances should look at the Little Rosie 3648M. MidNite rates it for 3.6kW continuous with 5.4kW surge from a 48Vdc battery, and it includes a 60A charger and a neutral-ground-bonding relay. It is compliant with UL 458 and UL 1741.
$1,293.90
Anker SOLIX
This bundle pairs the C2000 Gen 2 with a 400W solar panel. With only 9W of idle power consumption, it can run a dual-door fridge for up to 32 hours.
$1,159.99
BLUETTI
Two BLUETTI 500W solar panels are sold together in this listing. The 2-pack suits systems with a higher solar input that want a larger array from the start.
$1,358.40
