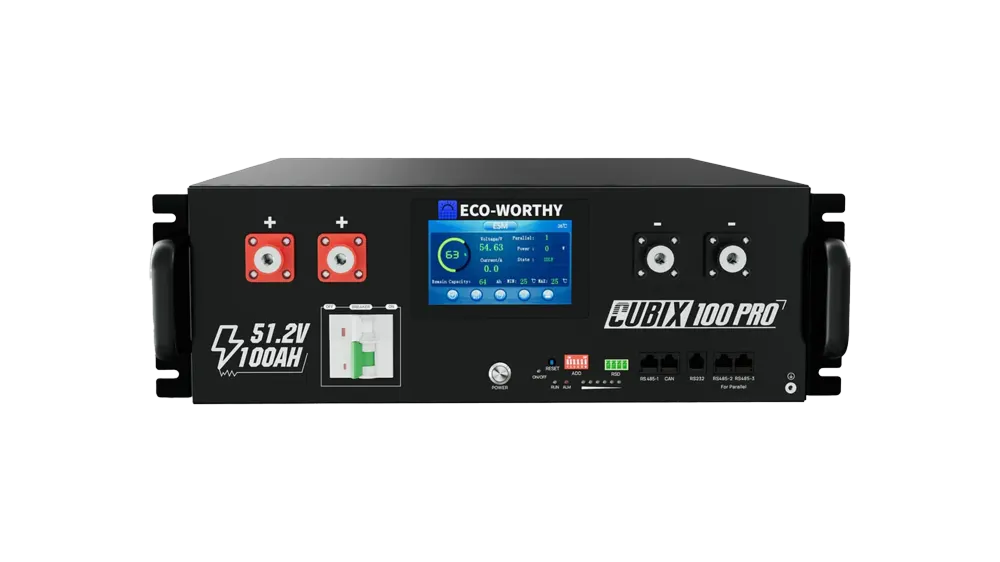

ECO-WORTHY Cubix 100 Pro 48V 100Ah Server Rack Battery, 5.12kWh LiFePO4 Energy Storage, Touchscreen, Bluetooth and WiFi

Overview

With 5.12kWh of LiFePO4 storage in a 48V, 100Ah server rack format, the Cubix 100 Pro is ECO-WORTHY's touchscreen model with Bluetooth and WiFi. It uses the Pylon protocol by default, so it works with most inverter brands out of the box.

Planning a system? Read our guide: How to size a battery backup system for your home.

Key benefits

• Charges and discharges safely at temperatures as low as -4°F, which suits sheds and garages.
• Layered safety includes a fire arrestor aerosol, an RSD connection point, and a monitoring BMS.
• Up to 32 batteries can be combined for 163.84kWh, so a system can start small and grow.
• A touchscreen and app allow local and remote monitoring and configuration.

Key features

• 48V 100Ah LiFePO4, 5.12kWh
• CAN, RS232, and RS485 communication with Pylon protocol as default
• Fire arrestor aerosol and RSD (Rapid Shutdown) connection point
• Touchscreen showing voltage, cell voltages, current, remaining capacity, and SOC
• Standard 19in rack mount form factor

Ideal use

Works in off-grid and grid-connected systems, including home solar, backup power, and off-grid solar kits, installed in a dry, sheltered location.

What is included

• Battery parallel cables
• Communication cables

Key specifications

Model / SKU

GW-L12L100ACUB100PRO-1

Brand

ECO-WORTHY

Category

Batteries

Voltage

48V

Energy capacity

5.1 kWh

From the manufacturer

ECO-WORTHY Cubix 100 Pro 48V 100Ah Server Rack Battery Overview ECO-WORTHY’s Cubix 100 Pro provides 5.12kWh of energy storage in a 48V, 100Ah, server rack, LiFePO4 package. It’s designed with fire arrestors, an RSD (Rapid Shutdown) connection point, remote monitoring capabilities, and the ability to safely charge and discharge in temperatures as low as -4°F. It communicates through CAN, RS232, and RS485, and since it uses the Pylon protocol as the default communication protocol, it’s compatible with most inverter brands right out of the box. Key Features of the ECO-WORTHY Cubix 100 Pro Temperature Charging Down to -4°F ECO-WORTHY uses an advanced electrolyte in the Cubix 100 Pro which enables safe battery charging and discharging in cold climates. This makes it ideal for installation in a shed, garage, or other dry and sheltered location. Layered Safety Protection The Cubix 100 Pro includes a fire arrestor aerosol that activates when the temperature reaches a dangerous level. The aerosol suppresses a fire to prevent it from spreading to other system components or to your home. The battery face integrates an RSD connection point. Once connected, the RSD button can quickly shut down the battery in an emergency. This feature protects firefighters and other emergency personnel who may need to access the alternative energy system during a crisis. The BMS (Battery Management System) continuously monitors the battery for unsafe conditions such as over-charging, over-discharging, over-current, short-circuit, and high or low temperatures. If it notices any of these conditions, it can display a warning message on the integrated screen and turn off the battery until it reaches safe conditions. Local and Remote Setup and Monitoring A touchscreen display shows battery voltage, cell voltages, system current, remaining capacity, charging status, SOC (State of Charge %), and more information. This makes it easy to monitor or configure the battery in real time, and ECO-WORTHY provides an app for remote monitoring and configuration. Scalable Home Battery Storage System It’s possible to combine up to 32 Cubix 100 Pro batteries for up to 163.84kWh of energy storage. Since an average alternative energy system uses 40-75kWh each day, this is enough to power a very large home or a small commercial system. This scalability also makes it possible to start with one or two batteries and add more over time. Standard 19in Rack Mount Form Factor The Cubix 100 Pro fits neatly into typical battery server racks. The shipment comes with battery parallel and communication cables, so it’s easy to install upon arrival. Best Use for the ECO-WORTHY Cubix 100 Pro The Cubix 100 Pro battery works well with both off-grid and grid-connected renewable energy systems. Home solar power systems Backup power systems Off-grid solar kits Solar and Battery System Compatibility Use the Cubix 100 Pro in your 48V alternative energy system. Since it uses the Pylon protocol, it’s compatible with most inverter brands, and its ability to operate in low temperatures makes it well suited for cold climates.

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Our team can check your inverter's protocol support before you add the Cubix 100 Pro. Message our team on WhatsApp.
