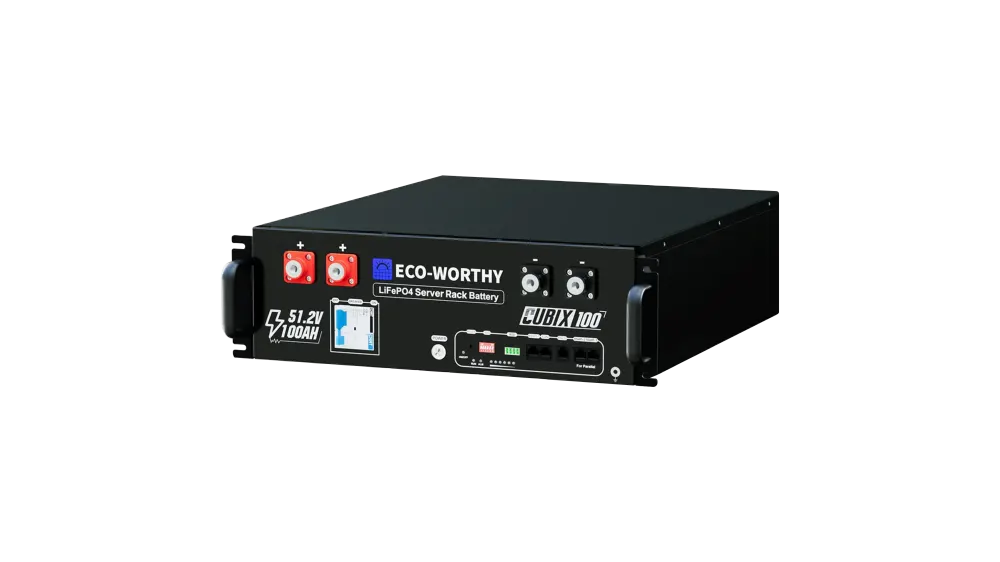

ECO-WORTHY Cubix100 48V 100Ah LiFePO4 Server Rack Battery, UL 1973 and UL 9540A, Off-Grid or On-Grid Lithium Battery

Overview

ECO-WORTHY's Cubix100 is a 48V 100Ah LiFePO4 server rack battery providing up to 5.12kWh, listed with UL 1973 and UL 9540A. It suits grid-tied, off-grid, and home backup installations.

Planning a system? Read our guide: How to size a battery backup system for your home.

Key benefits

• Grade A cells are rated for 6,000 cycles at 80% depth of discharge.
• UL 9540A certification means the battery was fire-safety tested at cell, module, and installation level.
• Up to 32 batteries can be wired in parallel as storage needs grow.
• The Pylontech protocol works with inverters including Victron, Sol-Ark, and EG4.

Key features

• 48V 100Ah LiFePO4, up to 5.12kWh
• Integrated BMS with overcharge, overdischarge, temperature, and short circuit protection
• App shows SOC, remaining capacity, cycle count, and individual cell data
• Bluetooth for local monitoring and WiFi for remote monitoring
• Stacks up to six in the ECO-WORTHY server rack

Ideal use

Suited to stationary storage in small or expanding systems, from a single battery to a full rack.

What is included

• User manual
• Battery paralleling cables
• Communication cable
• Grounding cable
• Optional handles

Key specifications

Model / SKU

GW-L12L100ACUB100-1

Brand

ECO-WORTHY

Category

Batteries

Voltage

48V

Energy capacity

5.1 kWh

From the manufacturer

ECO-WORTHY Cubix100 48V 100Ah LiFePO4 Battery ECO-WORTHY’s Cubix100 48V 100Ah server rack battery provides up to 5.12kWh of power and is suited for grid-tied, off-grid, or home backup installations. It’s ideal for stationary applications, and it’s possible to wire up to 32 batteries in parallel for a maximum of 164kWh. Most homes use 40-70kWh each day, so this is enough storage to power large scale energy needs. ECO-WORTHY designed these batteries with grade A cells able to last 6,000 cycles at 80% DOD (Depth of Discharge). The integrated BMS (Battery Management System) continuously monitors battery health to prolong its life. It includes protections against over charging and over discharging, temperature protection, and short circuit protection. A UL 9540A certification means these batteries have been tested for fire safety. UL 9540A testing includes tests at the cell level, the module level, and the installation level. Individual batteries are safe for home use, and it’s possible to stack up to six batteries in the ECO-WORTHY server rack. This gives a total storage capacity of 30kWh. The eco-worthy app allows for system monitoring. Information on the app includes battery SOC (State of Charge %), remaining capacity, and cycle count. The app also shows cell information such as individual cell temperature, individual cell voltage, and the average voltage of all cells. Access the app with any smart device. Bluetooth connection enables local monitoring, and WiFi connection enables remote monitoring. Several items come with the Cubix100 to expedite installation. Each battery includes a user manual, battery paralleling cables, a communication cable, and a grounding cable. The batteries also include optional handles. These are especially useful when mounting the CUBIX-100 in a rack. Choose ECO-WORTHY’s 48V Cubix100 for a small or scalable energy system. It uses the Pylontech protocol which is compatible with nearly any inverter, including Victron, Sol-Ark, and EG4.

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

If you are pairing the Cubix100 with a specific inverter, our team can confirm compatibility. Message our team on WhatsApp.
