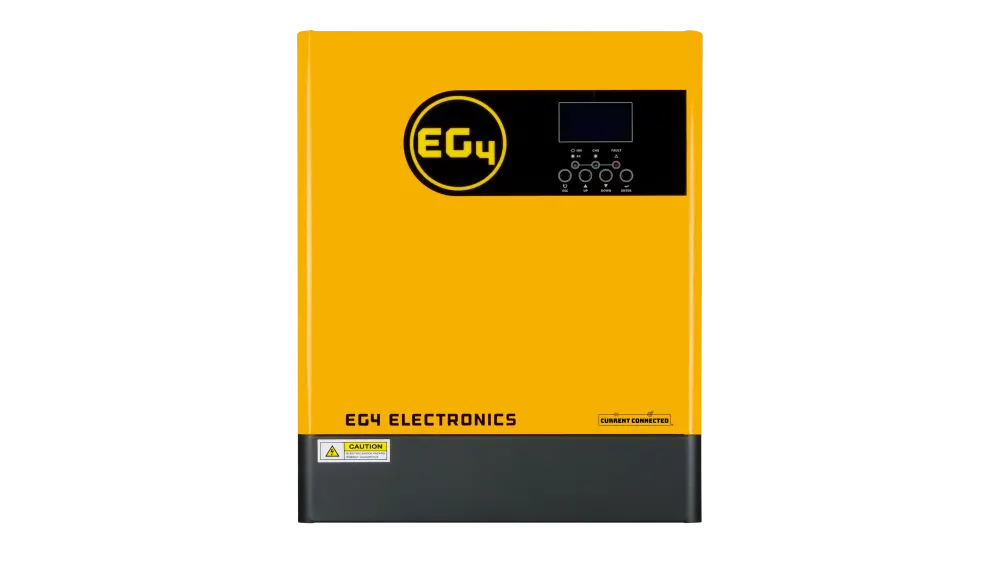

EG4 3000EHV 48V Off-Grid Inverter, Charger & 500V MPPT Controller, 3kW 120V AC Output, 5kW Solar Input

Overview

Beginners and scalable systems are the target for the EG4 3000EHV, a 48V pure sine wave off-grid inverter with a charger and 500V MPPT controller. It outputs up to 3kW continuously and takes up to 5kW of solar.

Planning a system? Read our guide: How to size a battery backup system for your home.

Key benefits

• Enough power for an RV or small shop, with up to 12 units in parallel for 36kW.
• Mounts to a wall with a few screws.
• Closed-loop communication with EG4 batteries reports voltage and SOC to the inverter.
• SBU, SUB, and UTL modes set how solar, battery, and AC input are prioritized.

Key features

• 3kW 120V AC output, 5kW solar input
• Integrated LCD screen for setup and basic settings
• Remote monitoring with the SmartESS Wi-Fi APP
• SOC-based switching to or from AC input with EG4 batteries

Ideal use

Good for RVs, small shops, and first off-grid systems that may expand with additional units.

What is included

• 125Adc breaker
• 6in DIN rail
• 4AWG battery cables and other cables
• WiFi dongle

Key specifications

Model / SKU

EG4OGI3KW00V2

Brand

EG4

Category

Whole-home backup

Voltage

48V

Rated power

3,000 W

From the manufacturer

EG4’s 3000EHV 48V Off-Grid Inverter is a pure sine wave inverter ideal for beginners or scalable systems. It can handle up to 5kW input from solar, and it continuously outputs up to 3kW. This is enough to power small systems such as an RV or small shop, but for systems requiring more power, it’s possible to wire up to 12 units in parallel for a total output of up to 36kW. Installation requires only a few screws to mount the 3000EHV to the wall, and this inverter comes with a 125Adc breaker, a 6in DIN rail, and several cables, including 4AWG battery cables. These convenient additions make it easy to install the entire system. As an EG4 inverter, it’s designed to communicate with EG4 batteries through closed-loop communication. This communication sends battery voltage, SOC (State of Charge %), and other information directly to the inverter. The integrated LCD screen makes it easy to set up the inverter and provides a simple way to adjust basic settings as needed. The included WiFi dongle also makes it possible to remotely monitor inverter settings with the SmartESS Wi-Fi APP. The 3000EHV has several different operation modes. The following features determine how the inverter prioritizes incoming power. SBU – Uses solar first, then battery power, and finally AC input, such as the grid. This is ideal when trying to use as little grid power as possible. SUB – Use solar first, then AC input, and finally battery power. This is ideal when the system’s primary purpose is for emergency backup. The system runs from the solar array as much as possible, but keeps the batteries available in case of emergency. UTL – Use AC input first, like a generator. Then use solar, and finally use battery power. This is ideal for off-grid situations that maximize generator usage. In a system with the 3000EHV and EG4 batteries, it’s also possible to program the inverter to switch to or from AC input based on the battery SOC. This is particularly useful when using SBU mode to reserve energy. If the grid goes out, the system switches to the available solar and battery power. This feature is useful for maximizing solar use throughout the day. In the morning, batteries may have low SOC, and since the sun is low, the solar panels cannot yet produce power. The inverter could direct AC power to the batteries, or it could wait for available solar power, preventing potential solar power waste throughout the day. Choose the 3000EHV for a reliable inverter that delivers up to 3kW continuous power, or use it in a scalable system.

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.
