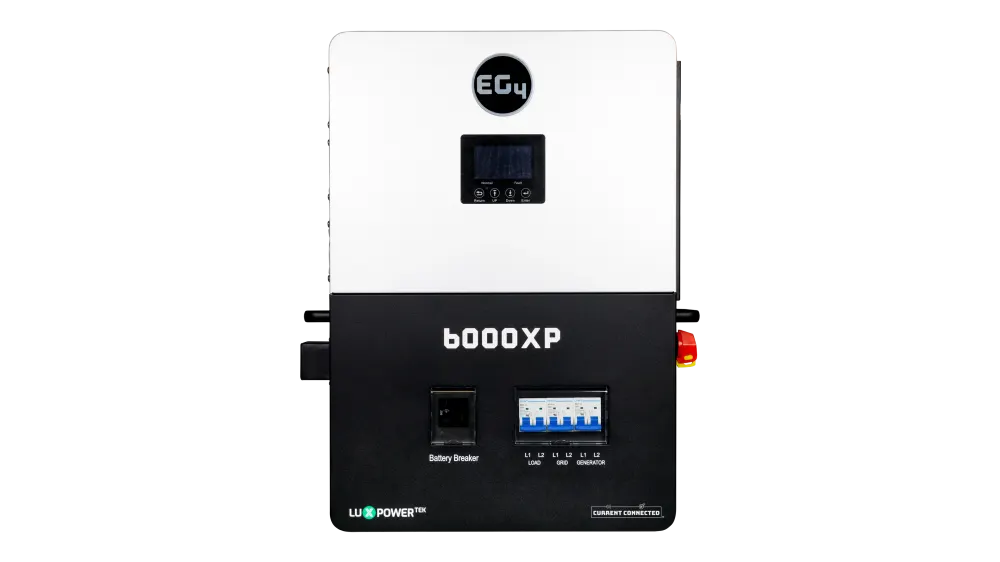

EG4 6000XP 48V 6kW Off-Grid All-in-One Inverter/Charger, 6kW Split-Phase AC Output, 8kW Solar Input, UL 1741 & UL 9540 Solar Inverter

Overview

Standalone and off-grid applications are the focus of the EG4 6000XP, a split-phase, all-in-one pure sine wave inverter with a 115A battery charger. It delivers 6kW of 120/240Vac power and accepts up to 8kW of PV input.

Planning a system? Read our guide: How to size a battery backup system for your home.

Key benefits

• Can act as a UPS for critical loads, using grid or generator power as a supplement when needed.
• Surges to 12kW for 3.5 seconds.
• Up to 16 units combine for 96kW.
• Closed-loop communication with EG4 48V batteries and various third-party BMS protocols.

Key features

• High-frequency transformerless design with 60W idle consumption
• Side PV switch for inverter-side maintenance
• Lead-acid mode for open-loop use with any 48V battery
• Built-in LCD screen for power flow, fault codes, and settings
• Connects to EG4 Monitor Center; ethernet or cellular adapter upgrades possible
• Configurable internal neutral-ground bond (not dynamic)

Ideal use

For off-grid homes and cabins with a 48V bank; EG4 recommends at least 200Ah of battery capacity per inverter.

What is included

• Wi-Fi adapter

Key specifications

Model / SKU

EG4HYB6K00V2

Brand

EG4

Category

Whole-home backup

Voltage

48V

Rated power

6,000 W

From the manufacturer

The EG4 6000XP (also referenced as SKU 1511090 by other retailers) is an affordable and scalable split-phase, all-in-one, pure sine wave inverter with a 115A battery charger designed to deliver 120/240Vac power. It delivers 6kW of output power and accepts up to 8kW of PV input. It is compatible with 48V battery banks and is intended for standalone and off-grid applications. It can act as a UPS to provide uninterrupted power to critical loads or prioritize renewable sources, automatically utilizing the grid or generator as additional power when needed. The 6000XP is a high-frequency transformerless inverter with an idle consumption of 60W. This lightweight design does not sacrifice capability as it supports a surge capacity of 12kW for 3.5 seconds. One inverter can power 6kW, or a vacuum, two large LED TVs, a fridge-freezer, an internet router, two cooking stations on an electric stove, 10 LED light bulbs and a computer all at once. Up to 16 units join together for a total output to 96kW. Every connection has its own disconnect to maintain safety. The PV switch on the side is a PV disconnect for inverter-side maintenance, although separate PV disconnects are still recommended closer to the solar panels. This unit supports closed loop battery communication with EG4 48V batteries and various third-party BMS protocols to allow a quick view of voltage, current, and SOC% (state of charge) coming directly from the battery. Lead-acid mode is used for open loop communication for any 48V battery paired with the 6000XP. EG4 recommends a minimum battery capacity of 200Ah or more per inverter. The built-in LCD screen indicates current power flow, displays any warning or fault codes, and allows full access to setting changes. The included Wi-Fi adapter, or upgradable ethernet adapter or cellular adapter, enables the inverter to connect to EG4’s Monitor Center. The monitoring center provides real-time operational status, historical data, setting changes, easy commissioning of the inverter, and firmware updates. When using an inverter with other AC sources such as shore power or a generator, it’s crucial to prevent multiple connections between neutral and ground. The 6000XP can be configured to create an internal neutral-ground bond, however, this feature is not dynamic and does not react to changes in input sources. The 6000XP can however source power from these sources when needed.

Warranty terms mentioned in this description are the manufacturer’s. Our own coverage is the 30-day limited warranty.

Before you order

We confirm compatibility, installation requirements, and delivery details with you during order review, before any payment. Home electrical work may require a qualified installer.

Talk to our team about neutral-ground bonding and generator setup for the 6000XP. Message our team on WhatsApp.
